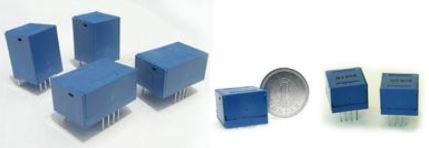

Current Sensor
Hall Effect, Open Loop Type
with Permalloy Cores
20mm or 12mm High, RoHS Compliant
|
Open Loop Type Current Sensor |
|
Features
* High accuracy and reliability in severe environments realized
by Astec's design.
* Detections of various currents including AC, DC, Pulses, etc.
* Detection of current direction.
* Analogue output by converting current value to voltage value
* Perfect isolation of output side from detection side.
* Insensitive for temperature change and voltage fluctuation.
* Minimized current noise by the shielding effect from Astec's design.
* Compact size and light weight.
* UL Listed
|
|
 |
|
Singel Output & Dual Output |
|
* SCD Series: | Single Output |
| Input Current(If) : | 3, 5, 10, 15, 20A |
| Input Voltage: | +5, +/-5, +12, +/-12, +/-15V |
|
|
* SCL Series: | Dual Output |
| Input Current(If) : | 3, 5, 10, 15, 20A |
| Input Voltage: | +12V |
|
|
|
|
|
Application Examples
|
|
* Servomotor Drive
* Inverter
* Robot Arm
* Power Supply Detection
* Chip Mounte
* Broadcasting Equipment
* Others |
|
Distributors
U.S.A
CUI Inc.
Industrial Electronics Division
20050 SW 112th Avenue,
Tualatin, OR 97062,
Tel.: (503)-612-2322
Fax.: (503)-612-2380
Single type: SCD 20mm High
|
Germany (Europe)
Seika Sangyo GmbH
Heltorfer Strasse 16,
40472 Duesseldorf, DEUTSCHLAND.
Tel.: +49(0)211-4158-112,
Fax.: +49(0)172-21 81 406,
www.seika-germany.com ,
JR Encoder
|
|
|
Part Number Table |
|
|
