Magnetic Rotary Encoder Astec Co., Ltd., Encoder

Astec Co., Ltd., Encoder Flat Magnetic Rotary Encoder made in Japan

Astec Co., Ltd., EncoderAstec JR Series

Astec Co., Ltd., Encoder

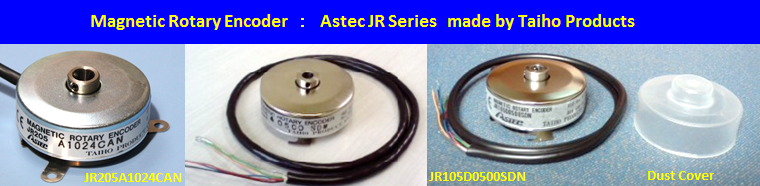

Astec Co., Ltd., EncoderJR Series are compact encdoers for severe environmets made by Astec in Japan.

Astec Co., Ltd., Encoder Part Number for Order , Brochure JR105/205/215/305 ,
In general, encoder or pulese generator has longer axial dimmention than its diameter. JR Series has the dimensions of dia.52.2mm x 31mm, including a bracket and a dustcover. As far as the diamaeter is not larger than motor case diameter, shorter axial length is better for saving space.

JR Series stands against severe environments like high temperature, high humidity, vibrations, oil mist, dusts, etc.

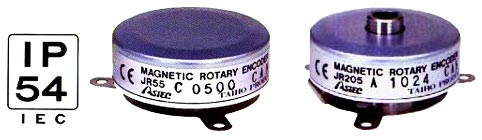

JR205: Standard
Incremental + Index :   AB+Z signals
Resolution : 300, 360, 500, 1000, 1024, 2000 & 2048 ppr.
Operating Tenperature:
Open Collector JR205A and Voltage Output JR205C :
  -20 degree C to + 90 degree C :
Line Driver JR205D :
  -30 degree C to + 90 degree C :
Astec Co., Ltd., Encoder Astec Co., Ltd., Encoder
Astec Co., Ltd., Encoder Hollow Shaft Type
Astec Co., Ltd., Encoder JR105, 205, JR215 and JR305 have same configurations.

JR105: Standard
Incremental Only :   AB signals only
Resolution and other specifications : Same with JR205 above stated.

JR215: High Temperature Resitant on special request.
Incremental + Index :   AB+Z signals
Operating Tenperature: -20 degree C to + 115 degree C
Astec Co., Ltd., Encoderwith Open Collector JR215A
Astec Co., Ltd., EncoderOther outputs : on special request
Resolution : 360, 500, 1000, 1024 ppr.

JR305: High Humidity Resitant.
AB+Z signals, Incremental + Index,
Operating Tenperature:
  -30 degree C to + 90 degree C with Line Driver JR305D.

JR55: Production is suspended right now
AB signals, Incremental.
Operating Tenperature: -10 degree C to + 80 degree C
with Open Collector JR55A, Voltage Output JR55C & Line Driver JR55D.
Astec Co., Ltd., Encoder Astec Co., Ltd., Encoder
Astec Co., Ltd., Encoder End Shaft Type
Refer to the following PDFs for further information.
Astec Co., Ltd., Encoder Part Number for Order , Brochure JR105/205/215/305 , Brochure JR55

Distributor / Agent
U.S.A.
CUI Inc. (Components)
20050 SW 112th Avenue,
Tualatin, OR., 97062, U.S.A.
Tall Free: 800-275-4899
Tel.: (503)-612-2300,
Fax.: (503)-612-2383,
www.cui.com , JR Encoder
Argentina
Varitel Ingeniera Electronica S.A.
Manuel Baliña 456
Lomas de Zamora (B1832CCJ)
Buenos Aires - ARGENTINA.
Tel.:(54) 11- 4243-1171/0959,
Fax.:(54) 11- 4292-7545,
www.varitel.com   JR Encoder

Germany
Seika Sangyo GmbH
Heltorfer Strasse 16,
40472 Duesseldorf,
DEUTSCHLAND.
Tel.: +49(0)211-4158-112,
Fax.: +49(0)172-21 81 406,
www.seika-germany.com
JR Encoder

Japan
MOC-Mitaka
2-21-13, Nishikubo,
Musashino-shi, Tokyo,
P.C.: 180-0013, JAPAN.
Tel.: (81)-(0)90-5207-9979
Fax.: (81)-(0)422-56-1330<
JR205 Magnetic Encoder

E-Mail
China
M.I.E. Corpolation (Tokyo)
East 403, 1-25-10, Ikebukuro-Honmachi,
Toshima-ku, Tokyo, JAPAN.
Mr. Yukio Cho
Tel.: (81)-3-3987-3575,
Fax.(81)-3-3987-3589.
Summary in Chinese   E-Mail
Shanghai Bostek Motor Co., Ltd.
Room 1302 Plaza2 No.2099,
ZhongShan Road(W),
Shanghai CHINA, Post code 200235.
Tel.: (86)-021-64389138,
Fax.: (86)-021-64289908
www.sh-bostek.com , Summary in Chinese
JR Encoder,   Mail to Sales

Astec Co., Ltd., Encoder
Astec Co., Ltd., Encoder Magnetic Encoder Kit for Robot & Others
This magnetic encoder kit can make a gap between MR Sensor and a Magnetic Rotor very wide. Depending on condtions, gap can be from 0.3mm up to 2.0mm. No contact between a MR-sensor and a magnetic rotor. No bearings are necessary. This kit is designed by Admotec in U.S.A. Mass production can be made by Astec in Japan.
Astec Co., Ltd., Encoder
  1. For the applications which exsiting standard encoders can not be mounted.

  2. For severe environmets like high temperature over 100 degree C.

  3. For various severe conditions and environments like vibration, mechanical shock, dust, water, oil, oil mist, chemicals, etc.

  4. Direct mounting onto a shaft in motor case for an encoder included Servomotor.

  5. Direct mounitng onto shafts from dia.1mm through dia.250mm.

  6. For the application which requires wide air gap between a sensor and a rotor.
Admotec handles Astec JR Encoders in U.S.A.
Astec handles Admotec products in Japan.

Admotec Inc.
85 Mechanic Street, Lebanon, NH., 03766-1500, U.S.A.
Tel.: (603)-448-7000, Fax.: (603)-448-7007, , Encoder Kit
Astec Co., Ltd., Encoder
Astec Co., Ltd., Encoder Magnetic Encoder for Harsh Environments
Astec Co., Ltd., EncoderMSL115 Series are the Encoders designed for the severe applications like Paper-Pulp industry, Steel indutry, Harbor Crane indstey, etc. This series is a metric encoder made by Dynapar distributed by Astec in Japan.
  1. MSL115 Series is bearingless, non-contac type encoder and it can last more than 10 years with proper way of use.

  2. This Series is one of the most rugged encoderws with magneto-resistive sensor and a magnetic pulser.

  3. MSL115 can be attached to dia.15mm - dia.95mm motor shaft directly without any coupling. The other type RIM1250 can be attached up to dia.200mm motor shaft directly.

  4. This series is a through-shaft type and it can be mounted to the shaft between a motor and a break or fan like sandwiches.

  5. As the housing is a flat type, it takes only 20-30mm axial length for space saving.

  6. The air gap control between the sensor and the pulser is easy.

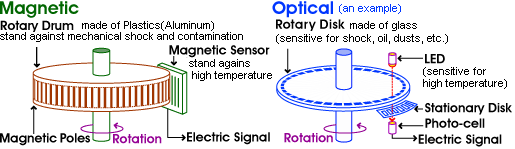

Astec Co., Ltd., Encoder Magnetic Encoder vs. Optical Encoder
