Coil Assembly, Custom Coil Winding

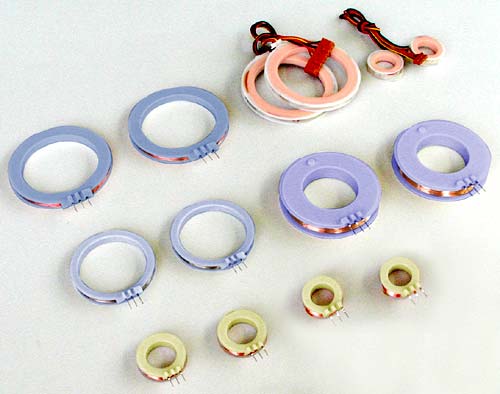

    Air-Core Coil,  Bobbin-Core Coil

Coil Winding Based on Customer's Request
Wound coill assemblies made by Taiho Products are used by customers in various kinds of industries. We are not only good at winding coils based on customers specifications but we also can offer our proposals for better performance of the products.

Click the following (1) - (4) for further information.

(1) Actuator Coil Assemblies
(2) Transformer/Choking Coil Assemblies
(3) Coill Assemblies for Sensors
(4) Coils Assemblies for Special Applications
Actuator Coil Assemblies
1. Specification Outline
* Coil Input :             AC100V - 200V, 50Hz - 60Hz
DC6V - 48V
* Output : On customer's requirement
* Duty Ratio: From low to high ratio
* Coil Types: Bipolar, Unipolar, Air-Core, Bobin Fan-Shaped, Hexagon, etc.
Coils with dia.0.05mm - dia.2.0mm Wires
* Electric
   Strength:
Meeting with JIS, PSE, UL and other safety standards

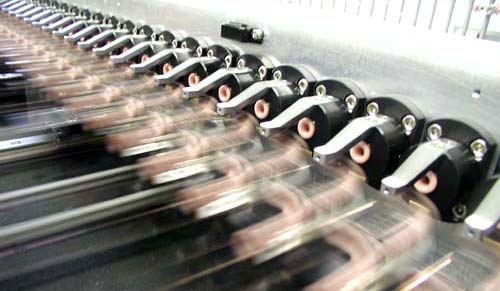

* Winders : Full automatic Winder, Flyer, Spindle and other Special Winders.  Special specification like Wire connection to Cable or Pin is avalable.

2. Applications & Actual Examples with Taiho made Coils
*Applications : Automobile, DC Solenoid Coil for construction machinery,
Colis for Stepper Motors, Scanner Motors, etc.
Solenoid Valves, Electromagnetic Coils for Motion Control.
* Examples : ABS System, Steering Control Equipments, Factory Automation, Office Equipments,
Amusement Machine, etc.
Return to top of this page
Transformer/Choking Coil Assemblies
2. Specification Outline
* Coil Input :      AC24V - 480V, 50Hz - 60Hz
DC6V - 48V
* Output : Same with input
* Efficiency : 75% min.
* Coil Types : Wound on Core, Wond on Bobbin, Edgewise coil of Flat Wire
Rond wire dia. 0.05 - dia. 2.0mm,
Square wire 1.0 x 0.5mm - 8 x 4mm,    Others.
* High
   Frequency
   Property :
Cores & Coils :
* with excellent high frequency property (1kHz - 500kHz).
* with low loss of high frequency output (50mW/1W).

*Superimpos.
  Property :

Core material and coil winding with excellent superimposition propertiers.
Edgewise Wound Coil   Inductor Coil

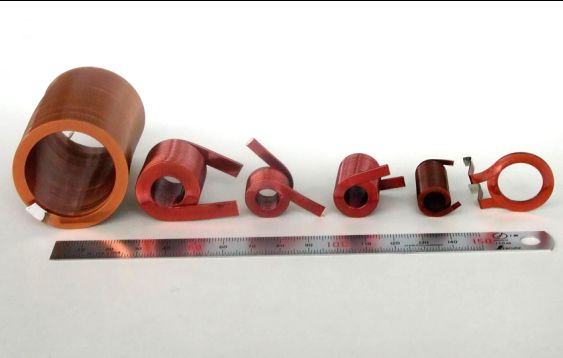

High quality edgewise coils can be made by Taiho Products.   For example, a very thin edgewise coil with 0.3mm thick flat wire can be made without any wrinkles.

2. Applications and Actual Examples with Taiho made Coils
*Application : Switching Power Supply, Inverters, Converters
Voltage Transformer, Pulse Transformer
Radio-Frequency Choking Coil, Smoothing Coil, etc.
* Examples : Automobile Parts,
Power Supply for Office Equipments, Motion Controlling Equipments, Adapter, etc.
Return to top of this page
Coil Assemblies for Sensors
1. Specification Outline
* Coil Input : AC 24-240V (Higher frequency of 50-60Hz - 1kHz)
DC 6V-48V (Higher frequency of 50-60Hz - 1kHz)
* Output : On customer's required sepcification

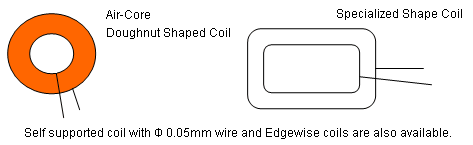

* Coil Configulation: Air-Core, Doughnut and Sepcial Shape

2. Applications and Actual Examples with Taiho made Coils
* Applications :   ID Tag Coil, Transmitting Antenna Coil
* Examples with Taiho made Coils :   ID Information detection, IC Card, etc.
Return to top of this page

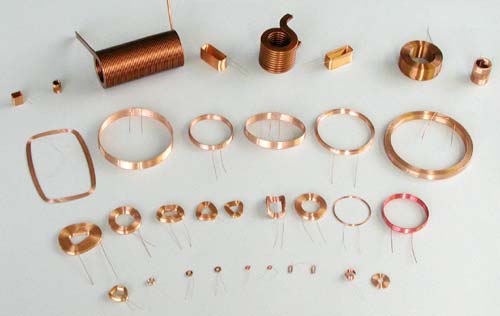

Coil Assemblies for Secial Applications

Alpha Wound coil

Application: Motor Coil, Linear Motor Coil
1. Specification Outline
* Coil Input:      AC24 - 240V (Higher frequency than 50-60Hz - 1kHz is possible.)
DC6V - 48V
* Output : Designing and manucaturing based on custom specification is available.
* Coil Types: Wound on Core, Wound on Bobbin,
Edgewise wound coil of Flat Wire.
Round wire dia. 0.05 - dia. 2.0mm,
Square wire 1.0 x 0.5mm - 8 x 4mm
Air-Core, Doughnut and Special Shape
* Duty Ratio: From low to high ratio
* Electric
   Strength:
Meeting with JIS, PSE, UL and other safety standards

2. Applications and Actual Examples with Taiho made Coils.
* Applications : Stator coil for direct attachment on a board, Compact hexagonal(multi-layered) coil, Specially shaped coil.
* Examples with Taiho      made Coils : Stepping Motor, Compact DC Coreless Mtor, Magnetic Field Detecting Sensor
Return to top of this page
