Solenoid, Molded Coil Assembly
Heat Resistant & Water Proof |
A Turn Key of Molded Coils
Coil Winding and Plastic Molding are made in a Same Factory. |
 |
 |
| 1. Specification Outline |
|
AC100V - 200V, 50Hz - 60Hz
DC6V - 48V |
|
On customer's requirement |
|
From low to high ratio |
|
Meeting with JIS, PSE, UL and other safety standards. |
|
Complying with JIS D0203 1-4 (Every Automobiole Vibration Test) and Special Water Proof Test |
|
High Output by Compact Assembly
High reliability by coil winding and plastic molding in a same factory
Designing and manufacturing on requested specification |
|
2. Application & Actual Examples with Taiho made Molded Coils |
|
Automobile, DC Solenoide Coil for Construction related Automobile
Solenoide Valves, Electromagnetic Coils for Motion Control |
|
ABS System, Steering Control Equipments, Air Conditioner and Others |
|
|
|

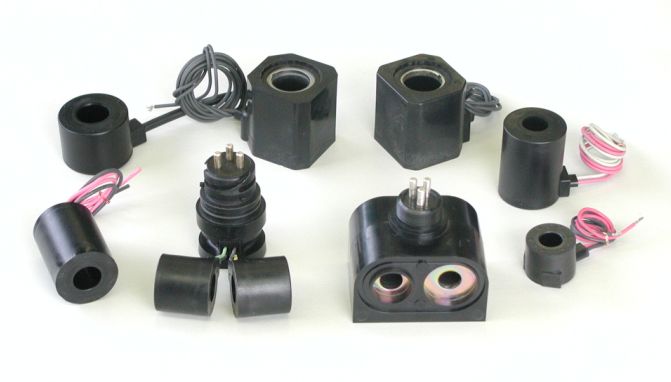

Molded Coilds made by Taiho Products |
- Meeting with JIS D1601(Vibration) and having high water resistance.
|
- Bobins specially designed by Taiho Products are used.
|
- Minimized size by well controlled winding.
|
- Designing and manufacturing of molded coils of customized specification.
|
- Wide range heat resistance from Isolation Class B to class H.
|
- PPS molded coil which can stand against water and heat up to 200 degree C is available.
|
|
